Material introduction

DMC/BMC

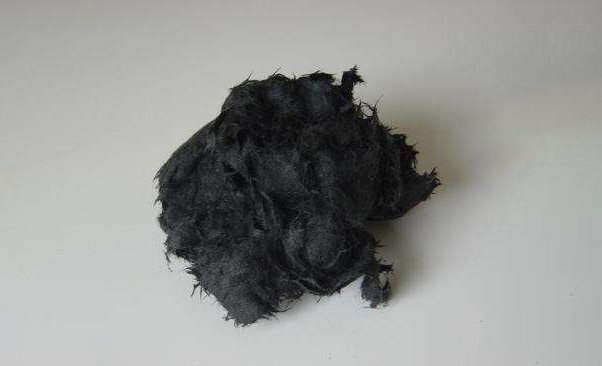

The Chinese name of BMC is bulk molding compound. BMC is a molded intermediate material for manufacturing glass fiber reinforced thermosetting products by a semi-dry method. It has excellent electrical properties, mechanical properties, heat resistance, and chemical corrosion resistance. It is also suitable for various molding processes and can meet the performance requirements of various products. Mainly used in electrical appliances, motors, radios, instruments, machinery manufacturing, chemical equipment, construction, transportation, national defense, etc.

Excellent properties of BMC

DMC/BMC (unsaturated polyester glass fiber reinforced bulk molding compound) is the abbreviation of glass fiber reinforced unsaturated polyester thermosetting plastics, and it is a kind of reinforced thermosetting plastics currently used in large quantities.

model	main ingredient	characteristic
IDI BMC 4 4 - 10	chopped glass fiber unsaturated resin filler calcium carbonate additive	High strength, high wear resistance
IDI BMC 4 6 - 12		Hard texture, corrosion resistance, good insulation, high electrical breakdown strength, arc resistance, flame retardant , used for auto parts, electrical equipment, etc.
IDI BMC 46-16		Excellent water resistance, oil resistance, corrosion resistance, high temperature resistance, used in auto parts, electrical equipment, wireless communication, etc.

Advantages :

1. The molding cycle is short, it can be molded or injected, and it is suitable for mass production.

2. A large amount of filler can be added which can meet the requirements of flame retardancy and dimensional stability with low cost.

3. Complex products can be integrally formed, and inserts, holes, platforms, ribs, bosses, etc. can be formed at the same time.

4. Compared with ordinary thermoplastics, the heat resistance, insulation, elastic modulus and other properties of the product are higher.

5. The product size is accurate.

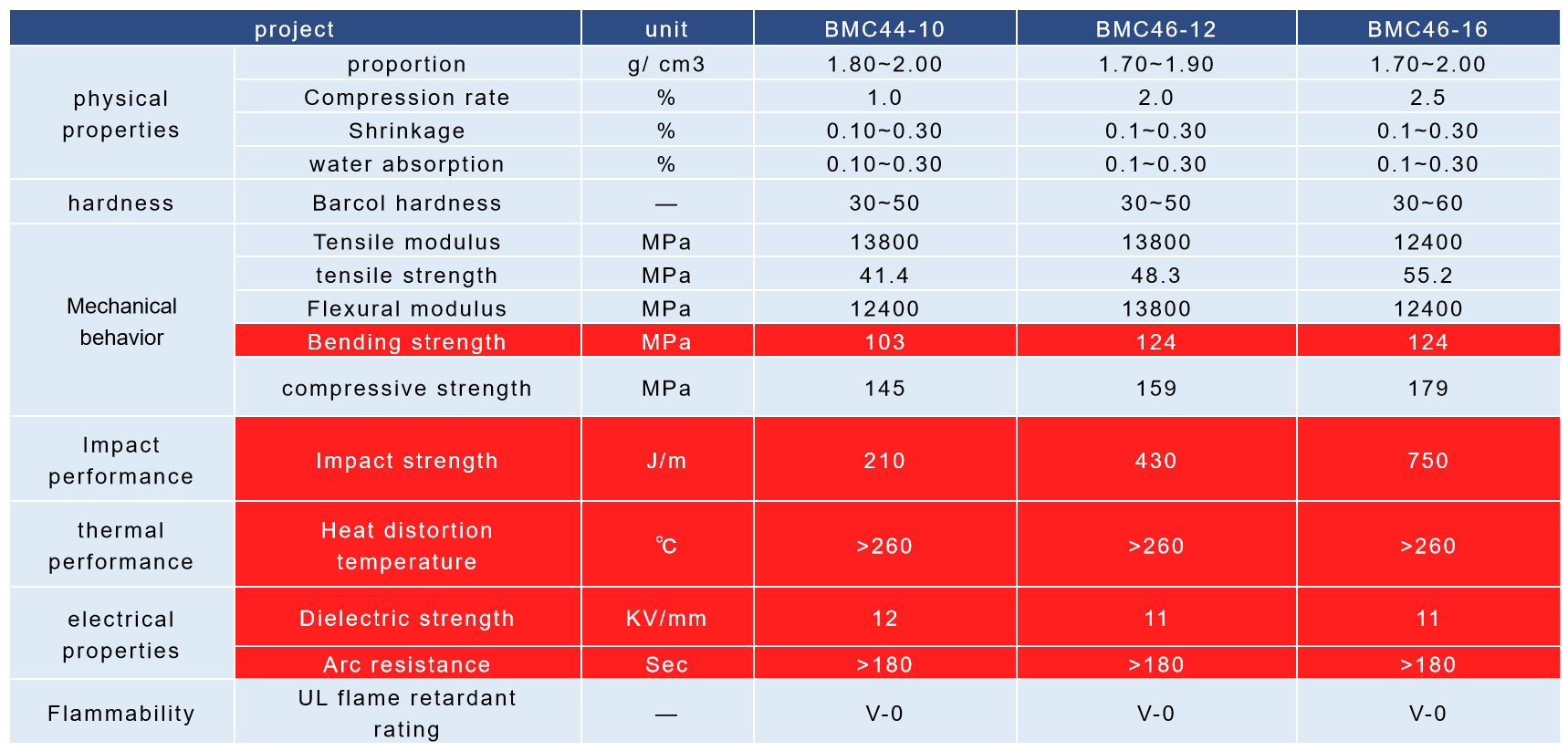

Material properties

Security Parts

Material: BMC Size: Diameter: 103 Height: 100 Relative Density: 1.78g/cm³ Properties: Flexural Str...

Inquiry More
Electric Tools

Material: BMC Size: Length: 363mm Width: 115mm Height: 44mm Relative Density: 1.78g/cm³ Properties:...

Inquiry More
Ammeter Terminal

Material: BMC Size: Length: 145mm Width: 61mm Height: 37mm Relative Density: 1.78g/cm³ Properties:F...

Inquiry More
Motor Parts

Material: BMC Size: Diameter: 128mm Height: 21.5mm Relative Density: 1.78g/cm³ Properties: Flexural ...

Inquiry More
